Rega Neo High-Performance Turntable TT-PSU Power Supply
Upgrade
PREOWNED – FULLY TESTED – INCLUDES ORIGINAL BOX, PACKING,
POWER SUPPLY, MULTI-PIN CABLE – Does not include speed adjustment tool

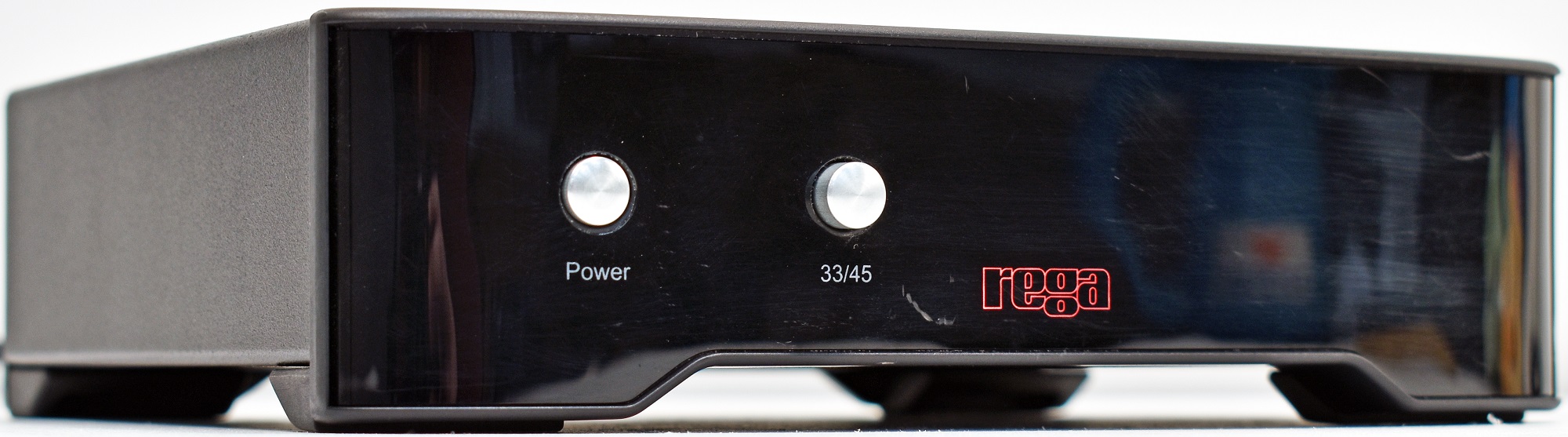

Neo turntable PSU
The Neo PSU is an advanced turntable power supply providing
user controllable fine speed adjustment, advanced anti-vibration motor circuit
and the convenience of electronic speed change. The Neo will make a welcome
addition to any compatible Rega turntable by reducing motor
noise, improving speed stability and rotational speed accuracy.
The Neo PSU is compatible with the following Rega
turntable models:
P3-24 / RP3 / Planar 3 2016 / RP6 / P5 / P7 / RP40 special
edition / RP8 Or any older Rega turntable fitted with
our aftermarket 24v motor upgrade kit.
Using the same DSP (digital signal processing)
generator found in the RP10 the Neo is built upon a high stability crystal. The
Neo features an advanced anti vibration circuit, fine motor speed adjustment
and the convenience of electronic speed change. The DSP generator will divide
the accurate signal from the crystal to the exact frequency required to turn the
platter at the selected speed whilst will producing a near perfect
sinusoidal waveform to drive the 24v motor.
Neo Technical Specifications
Output to motor bi-phase = 24 V AC protected by resettable
fuse.
Power consumption = 7.2 W
Voltage = 24 V AC
Power supply: Rega PS1 only.
Speed control step size = 0.01 RPM.
Dimensions (w x d x h) 7″ x 6″ x 2″ (not including buttons on
front and cable conection on back)
PS1 (UK)
Input 230 V ~ 50 Hz 0.07 A
Output 24 V ~ 350 mA AC
PS1 (EU – Euro 2 pin)
Input 230 V ~ 50 Hz 0.07 A
Output 24 V ~ 350 mA AC
PS1 (American)
Input 115-120 V ~ 60 Hz
Output 24 V ~ 350 mA AC
PS1 (Australian)
Input 230 V ~ 50 Hz 0.07 A
Output 24 V ~ 350 mA AC
PS1 (Japan)
Input 100 V ~ 50/60 Hz
Output 24 V ~ 350 mA AC
PS1 (Korea)
Input 220 V ~ 60 Hz 0.07 A
Output 24 V ~ 350 mA AC
